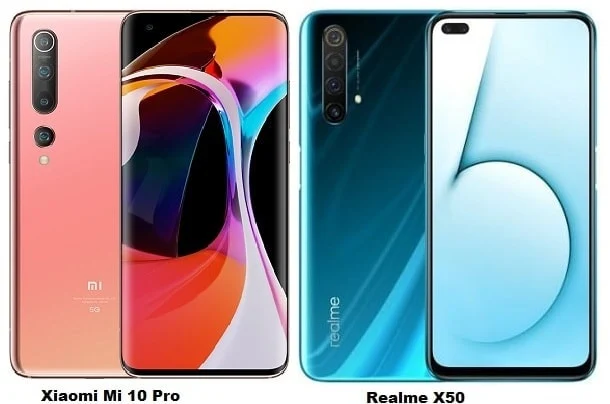

Realme X50 Vs Xiaomi Mi 10 Pro Specs Comparison

Realme X50 is equipped with Snapdragon 765G chip set, 6 GB or 8 GB or 12 GB RAM, 128 GB or 256 GB storage, 6.7" IPS screen with 120 Hz refresh rate, 4200 mAh battery with 30W fast charging, quad rear camera with 64 MP main sensor + 8 MP ultra-wide lens + 12 MP telephoto lens + 2 MP macro lens, dual front camera with 16 MP main shooter + 8 MP ultra-wide lens, and 380 dollars price on launch.

While Xiaom Mi 10 Pro 5G is powered by Snapdragon 865 chipset, 8 GB or 12 GB RAM, 128 GB or 256 GB or 512 GB storage, 6.67" AMOLED display with a 90 Hz screen refresh rate, 4500 mAh battery with 50W fast charging, quad rear camera with 108 MP main sensor + 20 MP ultra-wide lens + 8 MP telephoto lens + 12 MP portrait lens, 20 MP front camera, and 716 $ price on launch.

Here’s an in-depth specifications comparison between Xiaomi Mi 10 Pro 5G Vs Realme X50 5G.

Jump to:

System  on  Chip (SOC)

Connectivity  

Xiaomi Mi 10 Pro 5G	Realme X50 5G
Brand and Model	Brand and Model
Brand	Brand
Xiaomi	Realme
Model	Model
Model name of the device.
Mi 10 Pro	X50 5G
Model Alias	Model Alias
Аlternative names, under which the model is known.
	RMX2051
Mi 10 Pro Operating System (OS)	Realme X50 5G Operating System
An operating system (OS) is the program that manages all of the other application programs in a smartphone.
Android 10	Android 10
User Interface (UI)	User InterFace (UI)
A user interface (UI) is the graphical and usually touch-sensitive display on a smartphone that allows the user to interact with the device's apps, features, content and functions
MIUI 11	Realme UI

Mi 10 Pro System on  Chip (SOC)	Realme X50 5G System on  Chip (SOC)
System on chips manages and controls the operation of the hardware components such as Main processor, graphics processor and memory.
SOC	SOC
SOC is a microchip with all the necessary electronic circuits.
Qualcomm Snapdragon 865	Qualcomm Snapdragon 765G
Process Technology	Process Technology
Nanometer (nm) architecture is the size of a transistor. The smaller the size, the more transistors can be integrated into the processor chip, which increases the computing volume.
7 nm	7 nm
CPU	CPU
CPU consists of multiple cores: Dual, Quad, Hexa, and Octa core. CPU cores distribute the work that comes in when you use your phone.
1x 2.84 GHz Kryo 585	1x 2.4 GHz Kryo 475
3x 2.42 GHz Kryo 585	1x 2.2 GHz Kryo 475
4x 1.8 GHz Kryo 585	6x 1.8 GHz Kryo 475
CPU Bits	CPU Bits
Processors use their register to store data as they perform their job, so more room means more values can be stored.
64 bit	64 bits
Instruction Set	Instruction Set
The instruction set architecture (ISA) is a group of commands used by the software to manage the CPU's work.
ARMv8-A	ARMv8-A
CPU Frequency	CPU Frequency
It is measured in Megahertz (MHz) or Gigahertz (GHz). That number represents how many times the internal clock inside the CPU ticks in cycles per second.
2840 MHz	2400 MHz
CPU Cores	CPU Cores
The core CPU is the processor unit, which implements the instructions in the program. In the old days, each processor had one core that could focus on one task at a time. Today, CPUs have dual core, quad core, hexa core and so on. It increases the performance of the device, allowing several instructions to be executed in parallel.
8	8
GPU	GPU
GPU is a graphics processing unit, which handling the visual rendering elements of a phone's display They improve the performance in the rendering of videos, games, and other graphics.
Qualcomm Adreno 650	Qualcomm Adreno 620
GPU Frequency	GPU Frequency
The frequency is the clock rate of the graphic processor (GPU).
587 MHz

Mi 10 Pro RAM Capacity	Realme X50 5G RAM Capacity
RAM (Random-Access Memory) is short-term digital storage which used by the operating system and all installed applications.
	6 GB
8 GB	8 GB
12 GB	12 GB
RAM Type	RAM Type
The RAM in smart phones are a type known as LPDDR (low-power double data rate) which consumes little energy and heats up very little.
LPDDR5	LPDDR4X
RAM Channels	RAM Channels
More channels integrated in the SoC mean higher data transfer rates.
	Double channel
RAM Frequency	RAM Frequency
RAM frequency relates directly to the rate of reading/writing from/in the RAM memory.
2750 MHz	2133 MHz
Other Features	Other Features
5th Gen AI Engine
Game Turbo 3.0
3000 sq.mm. VC liquid cooling
9 temperature sensors built-in
Al temperature Control

Mi 10 Pro Storage	Realme X50 5G Storage
Smartphone storage is often considered as the total storage available on the device where the operating system, pre-installed apps and other system software is installed
128 GB	128 GB
256 GB	256 GB
512 GB
UFS 3.0
Mi 10 Pro Memory Cards	Realme X50 5G Memory Cards
The types can be split into three main categories; SDXC, SDHC and SD cards. The key difference is the file system the cards use, and it affects the amount of storage it can hold. SD cards cap out at 2 GB, SDHC cards can handle between 4GB and 32GB, while SDXC cards are the highest memory capacity and typically made in sizes larger than 32GB.
microSD	microSD
microSDHC	microSDHC
microSDXC	microSDXC

Mi 10 Pro Display	Realme X50 5G Display
The display of a smartphone is featured by its technology, resolution, pixel density, diagonal length, color depth, etc.
Type / Technology	Type / Technology
One of the main features of the display is its type / technology, on which depends its performance. There are many display types used in smartphones: LCD, OLED, AMOLED, Super AMOLED, TFT, IPS and a few others.
AMOLED	IPS
Diagonal Size	Diagonal Size
The size of a screen is usually described by the length of its diagonal, which is the distance between opposite corners.
6.67 in	6.57 in
169.42 mm	166.88 mm
16.94 cm	16.69 cm
Width	Width
Approximate inner width of the screen
2.8 in	2.7 in
71 mm	68.48 mm
7.1 cm	6.85 cm
Height	Height
Approximate inner height of the display
6.06 in	5.99 in
153.82 mm	152.18 mm
15.38 cm	15.22 cm
Aspect Ratio	Aspect Ratio
The ratio between the height and width of the display
2.167:1	2.222:1
Resolution	Resolution
The display resolution shows the number of pixels on the horizontal and vertical side of the screen. The higher the resolution means the greater the detail of the displayed content.
1080 x 2340 pixels	1080 x 2400  pixels
Pixel Density	Pixel Density
Pixel density is calculated by dividing the diagonal pixel resolution of a display by its diagonal size. The higher the pixel density means more detailed and clear information displayed on the screen.
386 ppi	401 ppi
151 ppcm	157 ppcm
Color Depth	Color Depth
It shows the number of bits used for the color components of one pixel. The more bits per pixel, the higher color variety and quality of the display.
24 bit	24 bits
16777216 colors	16777216 colors
Display Area	Display Area
The estimated percentage of smartphone display area.
90.08%	84.21 %
Other Features	Other Features
Information about other functions and features of the display.
Capacitive	Capacitive
Multi-touch	Multi-touch
Scratch resistant	Scratch resistant
3D curved glass screen
Corning Gorilla Glass 5	Corning Gorilla Glass 5
5M:1 dynamic contrast ratio	2.5D curved glass screen
500 cd/m²
Maximum brightness - 800 cd/m²
Peak brightness - 1200 cd/m²
90Hz refresh rate	120 Hz refresh rate
180Hz touch sampling rate
100% DCI-P3
TÜV Rheinland Low Blue Light Certification
Mi 10 Pro Sensors	Realme X50 5G Sensors
Sensors vary in type and purpose. They increase the overall functionality of the smartphone, in which they are integrated.
Proximity	Proximity
Light	Light
Accelerometer	Accelerometer
Compass	Compass
Gyroscope	Gyroscope
Barometer	Fingerprint
Geomagnetic	Pedometer
Fingerprint
Hall
In-display fingerprint sensor	Side-mounted fingerprint sensor
Ultrasonic proximity sensor
Under-display ambient light sensor
Gravity	Gravity

Mi 10 Pro Rear Camera	Realme X50 5G Rear Camera
The rear camera of the smartphone is usually placed on its back and can be combined with one or more additional cameras.
Sensor Model	Sensor Model
Manufacturer and model of the image sensor used by camera of the smartphone.
ISOCELL Bright HMX	Samsung S5KGW1
Sensor type	Sensor type
The most common types of sensors on smartphones are CMOS, BSI, ISOCELL, etc.
ISOCELL	ISOCELL
Sensor format	Sensor format
The image sensor format is the shape and size of the image sensor. It is usually expressed in inches.
1/1.33"	1/1.72"
Pixel size	Pixel size
Pixels are the basic building blocks of digital photography: they are the individual elements that capture light to compensate for your image. Pixels are usually measured in microns (μm). Generally, the higher the sensor size, the greater the pixel size, the greater the pixel size. The more light you can take, the better your photo.
0.8 µm	0.8 µm
Aperture	Aperture
The aperture is an opening or a hole through which light passes. Aperture controls the brightness of the image that travels through the lens and falls on the image sensor. The lower the f-stop number, the larger the diaphragm opening is, hence, the more light reaches the sensor. Usually, the f-stop number specified is the one that corresponds to the maximum possible diaphragm opening.
f/1.69	f/1.8
Flash Type	Flash Type
The rear cameras of mobile devices use mainly a LED flash. It may arrive in a single, dual- or multi-light setup and in different arrangements.
Dual LED	Dual LED
Image Resolution	Image Resolution
One of the main features of the cameras is their image resolution. It shows the number of pixels on the horizontal and vertical dimensions of the image, which can also be displayed in megapixels, indicating the approximate number of pixels in millions. Higher resolution means more image detail.
12032 x 9024 pixels	9248 x 6944 pixels
108.58 MP	64.22 MP
Video resolution	Video resolution
Video resolution in a smartphone refers to the number of distinct pixels that could be displayed in each dimension. Information about the maximum resolution at which the rear camera can shoot videos.
7680 x 4320 pixels	3840 x 2160 pixels
33.18 MP	8.29 MP
Video FPS	Video FPS
Stands for "Frames Per Second." FPS is used to measure frame rate. Information about the maximum number of frames per second (fps) supported by the rear camera while recording video at the maximum resolution. Some of the main standard frame rates for recording and playing video are 24 fps, 25 fps, 30 fps, 60 fps.
30 fps	30 fps
Features	Features
Information about additional software and hardware features of the rear camera which improve its overall performance.
Autofocus	Autofocus
Continuous shooting	Continuous shooting
Digital zoom	Digital zoom
Optical zoom
Digital image stabilization	Digital image stabilization
Optical image stabilization	Optical image stabilization
Geotagging	Geotagging
Panorama	Panorama
HDR	HDR
Touch focus	Touch focus
Face detection	Face detection
White balance settings	White balance setting
ISO settings	ISO setting
Exposure compensation	Exposure compensation
Self-timer	Self-timer
Scene mode	Scene mode
Macro mode
Phase detection autofocus (PDAF)	Phase detection autofocus (PDAF)
Sensor type - ISOCELL Bright
Tetra cell pixel size - 1.6 μm (4-in-1 pixel binning)	Pixel size- 1.6 um (4-in-1 pixel binning)
Super Phase detection
2160p @ 60 fps	6-element lens
1080p @ 960 fps
720p @ 960 fps	Focal length (35mm equivalent)- 26 mm
HDR10+ video recording	Angle of view- 78.6 degree
	UIS
	UIS Max
Secondary rear camera - 20 MP (ultra-wide)	Secondary rear camera - 8 MP (ultra-wide)
Aperture size - f/2.2 (#2)	Aperture size - f/2.3 (#2)
Angle of view - 117° (#2)	Angle of view- 119 degree (#2)
6-element lens (#2)	5-element lens (#2)
Third rear camera – 8 MP telephoto	Third rear camera- 12 MP (telephoto)
Pixel size - 1.0 μm (#3)
Aperture size - f/2.0 (#3)	Aperture size- f/2.5 (#3)
5-element lens (#3)
	Focal length (35 mm equivalent) – 54 mm (#3)
	2x optical zoom (#3)
10x hybrid zoom (#3)	20x hybrid zoom (#3)
OIS (#3)
Fourth rear camera - 12 MP (portrait)	Fourth rear camera- 2 MP (macro)
Pixel size - 1.4 μm (#4)
Aperture size - f/2.0 (#4)	Aperture size- f/2.4 (#4)
6-element lens (#4)
2x optical zoom (#4)
Dual Pixel Phase detection (#4)

*Mi 10 Pro Front Camera*	*Realme X50 5G Front Camera*
Modern smartphones have one or more front cameras and their positioning has led to various design concepts – pop-up camera, rotating camera, notch, punch hole, under-display camera, etc.
Sensor Model	Sensor Model
Manufacturer and model of the image sensor used by camera of the smartphone.
	Sony IMX471 Exmor RS
Sensor Type	Sensor Type
Information about the sensor type of the camera. Some of the most widely used types of image sensors on mobile devices are CMOS, BSI, ISOCELL, etc.
CMOS	CMOS
Aperture	Aperture
The aperture is an opening or a hole through which light passes. Aperture controls the brightness of the image that travels through the lens and falls on the image sensor. The lower the f-stop number, the larger the diaphragm opening is, hence, the more light reaches the sensor. Usually, the f-stop number specified is the one that corresponds to the maximum possible diaphragm opening.
f/2.2	f/2
Field of view	Field of view
In photography, the Field of view (FoV) depends not only on the focal length of the lens but also on the sensor size. It is derived from the lens's angle of view and the sensor's crop factor. The lens's angle of view is a measure of the angle between the two farthest separated points within the frame measured diagonally. Simply put, this is how much of a scene in front of the camera will be captured by the camera's sensor.
80 °
Image Resolution	Image Resolution
One of the main features of the cameras is their image resolution. It shows the number of pixels on the horizontal and vertical dimensions of the image, which can also be displayed in megapixels, indicating the approximate number of pixels in millions. Higher resolution means more image detail.
	4608 x 4456 pixels
20 MP	15.93 MP
Video Resolution	Video Resolution
Video resolution in a smartphone refers to the number of distinct pixels that could be displayed in each dimension. Information about the maximum resolution at which the rear camera can shoot videos.
1920 x 1080 pixels	1920 x 1080 pixels
2.07 MP	2.07 MP
Video FPS	Video FPS
Stands for "Frames Per Second." FPS is used to measure frame rate. Information about the maximum number of frames per second (fps) supported by the rear camera while recording video at the maximum resolution. Some of the main standard frame rates for recording and playing video are 24 fps, 25 fps, 30 fps, 60 fps.
30 fps	30 fps
Features	Features
Information about additional software and hardware features of the front camera which improve its overall performance.
HDR	Pixel size -1 um
Face unlock	Face unlock
	Sensor size- 1/3.1”
	Focal length (35 mm equivalent) – 22 mm
	5-element lens
Angle of view - 117°	Angle of view- 79.3 degree
	Super image Stabilizer
	Night portrait
	AI Beauty
	Video bokeh
	UIS
	Secondary Front Camera- 8 MP (ultra-wide angle)
	Angle of view- 105 degree (#2)
	Aperture size- f/2.2 (#2)
	5-element lens (#2)
Mi 10 Pro Audio	Realme X50 5G Audio
Information about the type of speakers and the audio technologies supported by the device.
Speaker	Speaker
The loudspeaker is a device, which converts an electrical audio signal into a corresponding sound such as ring tones, alarms, music, voice calls, etc. Information about the type of speakers the device uses.
Loudspeaker	Loudspeaker
Earpiece	Earpiece
Stereo speakers	Dolby Atmos
1216 linear speakers	Super linear speaker
Smart PA	1216 Super Linear speaker
	Dual microphone noise reduction
	Dolby Sound
Hi-Res Audio	Hi-Res Audio
Mi 10 Pro Radio	Realme X50 5G  Radio
The radio in a smartphones is a built-in FM radio receiver. Information whether the device has an FM radio receiver or not.
Yes	Yes
Mi 10 Pro Tracking /  Positioning	Realme X50 5G Tracking /  Positioning
Information about the positioning and navigation technologies supported by the device.
A-GPS	GPS
BeiDou	A-GPS
GPS (L1+L5)	GLONASS
GLONASS (G11)	BeiDou
Galileo (E1+E5a)
QZSS (L1+L5)
Mi 10 Pro Wi-Fi	Realme X50 5G Wi-Fi
Wi-Fi is a method for devices such as smartphones to connect wirelessly to the Internet using radio waves. Wi-Fi communication between devices is realized via the IEEE 802.11 standards. Some devices have the possibility to serve as Wi-Fi Hotspots by providing internet access for other nearby devices. Wi-Fi Direct (Wi-Fi P2P) is another useful standard that allows devices to communicate with each other without the need for wireless access point (WAP).
802.11a	802.11a (IEEE 802.11a-1999)
802.11b	802.11b (IEEE 802.11b-1999)
802.11g	802.11g (IEEE 802.11g-2003)
802.11n	802.11n (IEEE 802.11n-2009)
802.11n 5GHz	802.11n 5GHz
802.11ac	802.11ac (IEEE 802.11ac)
Dual band	Dual band
Wi-Fi Hotspot	Wi-Fi Hotspot
Wi-Fi Direct	Wi-Fi Direct
Wi-Fi Display	Wi-Fi Display
8x8 MU-MiMO
Mi 10 Pro Bluetooth	Realme X50 5G Bluetooth
Bluetooth is a short-range wireless communication technology that allows devices to transmit data or voice wirelessly over a short distance.
Version	Version
The Bluetooth has several versions, which improve the connection speed, range, connectivity and discoverability of the devices. Information about the Bluetooth version of the device.
5.1	5.0
Features	Features
Bluetooth uses many profiles and protocols for faster data exchange, energy saving, better hardware discovery, etc. Some of those supported by the device are listed here.
A2DP	A2DP
AVRCP
DIP
HFP
HID
HSP
LE	LE
MAP
OPP
PAN
PBAP
Mi 10 Pro USB	Realme X50 5G USB
The Universal Serial Bus (USB) is an industry standard that allows different electronic devices to exchange data.
Connector Type	Connector Type
There are several USB connector types: the Standard one, the Mini and Micro connectors, On-The-Go connectors, etc. Type of the USB connector used by the device.
USB Type-C	USB Type-C
Version	Version
There are several versions of the Universal Serial Bus (USB) standard: USB 1.0 (1996), the USB 2.0 (2000), the USB 3.0 (2008), etc. With each following version the rate of data transfer is increased.
	2.0
Features	Features
The USB interface in mobile devices may be used for different purposes such as battery charging, using the device as a mass storage, host, etc.
Charging	Charging
Mass storage	Mass Storage
On-The-Go	On-The-Go
Mi 10 Pro Headphone Jack	Realme X50 5G Headphone Jack
The headphone jack is an audio phone connector, a.k.a. an audio jack. The most widely used one in smartphones is the 3.5 mm headphone jack. Information whether the device is equipped with a 3.5 mm audio jack.
No	No

Mi 10 Pro Connectivity	Realme X50 5G Connectivity
Information about some of the most widely used connectivity technologies supported by the device.
Computer sync	Computer sync
OTA sync
Infrared	Tethering
Tethering
NFC	NFC
ANT+	VoLTE
Mi 10 Pro Browser	Realme X50 5G Browser
A web browser is a software application for accessing, fetching, displaying and navigating through information on the World Wide Web.
HTML	HTML
HTML5	HTML5
CSS 3	CSS 3
Mi 10 Pro Audio File Formats /  Codecs	Realme X50 5G Audio File Formats /  Codecs
Smartphones support various audio file formats and codecs, which respectively store and code/decode digital audio data. List of some of the most common audio file formats and codecs supported standardly by the device.
AAC	AAC
AAC+	AAC+ / aacPlus / HE-AAC v1
AMR
	AMR / AMR-NB / GSM-AMR
AMR-WB	AMR-WB
aptX	aptX / apt-X
aptX HD	aptX HD / apt-X HD / aptX Lossless
eAAC+	eAAC+ / aacPlus v2 / HE-AAC v2
FLAC	FLAC
MP3	MP3
	MIDI
	OGG
	WMA
WAV	WAV
LDAC
LHDC
aptX-Adaptive
PCM
AMR-NB
Mi 10 Pro Video File Formats /  Codecs	Realme X50 5G Video File Formats /  Codecs
Smartphones support various video file formats and codecs, which respectively store and code/decode digital video data. List of some of the most common video file formats and codecs supported standardly by the device.
	3GPP
M4V
MKV	AVI
WEBM	DivX
WMV	Flash Video
3GP	H.263
3G2	H.264 / MPEG-4 Part 10 / AVC video
ASF
	MKV
MP4	MP4
	WebM
	WMV
	Xvid

Mi 10 Pro Battery	Realme X50 5G Battery
The batteries smartphones differ in capacity and technology. They provide the electrical charge needed for the functioning of the devices.
Capacity	Capacity
The capacity of a battery shows the maximum charge, which it can store, measured in mili-Ampere hours.
4500 mAh	4200 mAh
Type	Type
In terms of chemical composition, there are different battery types and some of the most commonly used in mobile devices are the lithium-ion (Li-Ion) and the lithium-ion polymer battery (Li-Polymer).
Li-Polymer	Li-Polymer
Features	Features
Information about some additional features of the device's battery.
Wireless charging
Fast charging	Fast charging
Non-removable	Non-removable
Qi/PMA wireless charging - 30 W	30W fast charging
Wireless reverse charging - 10 W
USB Power Delivery 3.0 - 65W
TÜV Rheinland Safe Fast Charge 3.0
Charger Output Power	Charger Output Power
Information about the electric current (amperes) and voltage (volts) the charger outputs. The higher power output allows faster charging.
10 V / 5 A	5 V / 6 A
Quick Charge Technology	Quick Charge Technology
Quick charge technologies is used in devices such as mobile phones, for managing power delivered over USB, mainly by communicating to the power supply and negotiating a voltage. It offers more power and thus charges batteries in devices faster than standard USB rates allow.
Qualcomm Quick Charge 4+	VOOC 4.0
Mi 10 Pro Launch	Realme X50 5G Launch
Announced	Announced
2020, 13th February	2020, 7^th January
Status	Status
Release 18th February 2020	Release 7^th January 2020

Mi 10 Pro Price 

Realme X50 5G Price

8 GB + 128 GB = 716 $

8 GB + 128 GB = 360 $

8 GB + 256 GB = 788 $

6 GB + 256 GB = 388 $

12 GB + 256 GB = 859 $

12 GB + 256 GB = 432 $

Mi 10 Pro Design 

Realme X50 5G Design

Information about the dimensions and weight of the device, shown in different measurement units. Body materials, available colors, certifications.

Colors 

Information about the colors, in which the device is available in the market.

Pearl White

Polar White

Starry Blue

Glacier Blue

Width 

The horizontal side of the device when it is used in its standard orientation.

74.8 mm

 75.8 mm 

7.48 cm

  7.58 cm 

0.25 ft

2.94 in

  2.98 in 

Height 

The vertical side of the device when it is used in its standard orientation.

162.6 mm

163.8 mm 

16.26 cm

16.38 cm 

0.53 ft

 0.54 ft 

6.4 in

  6.45 in 

Thickness 

Information about the thickness / depth of the device in different measurement units.

8.96 mm

 8.9 mm 

0.9 cm

  0.89 cm 

0.03 ft

 0.03 ft 

0.35 in

  0.35 in 

Weight 

Information about the weight of the device in different measurement units.

208 g

202 g

0.46 lbs

0.45 lbs

7.34 oz

7.13 oz

Volume 

Estimated volume of the device, calculated from the dimensions provided by the manufacturer. Applies for devices in the form of a rectangular parallelepiped.

108.98 cm³

 110.5 cm³ 

6.62 in³

  6.71 in³ 

Body Materials

Materials used in the fabrication of the device's body.

Glass

Aluminum alloy

Aluminium alloy

Glass

Mi 10 Pro SIM Card 

Realme X50 5G SIM Card

The Subscriber Identity Module (SIM) is used in mobile devices for storing data authenticating the subscribers of mobile services.

SIM Card Type 

Information about the type and size (form factor) of the SIM card used in the device.

Nano-SIM

Nano-SIM (4FF-fourth form factor, since 2012, 12.30 x 8.80 x 0.67 mm) 

Nano-SIM / microSD

Number of SIM Cards 

Information about the number of SIM cards, supported by the device.

Features

Information about some specific features related to the SIM card(s) of the device.

Dual SIM stand-by (Both cards are active. When one is busy, the other is not active)

Dual SIM stand-by

Mi 10 Pro Mobile Network Technology and Bandwidth 

Realme X50 5G Mobile Network Technology and Bandwidth

Communication between devices within mobile networks is realized via various generations of network technologies, which provide different bandwidth.

UMTS

 UMTS (384 kbit/s) 

EDGE

GPRS

HSPA+

LTE Cat 20

LTE

5G NSA

TD-SCDMA

5G SA

5G NSA

Snapdragon X55 modem

5G SA

HPUE

Snapdragon X52 Modem

HO R&D

Mi 10 Pro Networks

Realme X50 5G Networks

A mobile (cellular) network is a radio system, which allows a large number of smartphones to communicate with each other.

GSM

GSM (Global System for Mobile Communications) is a standard to describe the protocols for second-generation (2G) digital cellular networks used by mobile devices. It has been improved with the addition of General Packet Radio Services (GPRS) and later via the Enhanced Data rates for GSM Evolution (EDGE) technology.

GSM 850 MHz (B5)

GSM 900 MHz (B8)

GSM 1800 MHz (B3)

GSM 1900 MHz (B2)

CDMA

CDMA 800 MHz (BC0)

UMTS

W-CDMA

UMTS 850 MHz (B5)

W-CDMA 850 MHz (B5)

W-CDMA 850 MHz (B6)

UMTS 900 MHz (B8)

W-CDMA 900 MHz (B8)

UMTS 1700 MHz (B4)

W-CDMA 900 MHz (B19)

UMTS 1900 MHz (B2)

W-CDMA 1900 MHz (B2)

UMTS 2100 MHz (B1)

W-CDMA 2100 MHz (B1)

TD-SCDMA

TD-SCDMA 1880-1920 MHz

TD-SCDMA 2010-2025 MHz

LTE

LTE is a 4G wireless communications standard developed by the 3rd Generation Partnership Project based on the GSM/EDGE and UMTS/HSPA technologies in order to increase the speed and capacity of wireless data networks. A further development of the technology is called LTE Advanced.

LTE-FDD 700 MHz (B12)

LTE-FDD 700 MHz (B17)

LTE-FDD 800 MHz (B20)

LTE-FDD 850 MHz (B5)

LTE-FDD 900 MHz (B8)

LTE-FDD 1700 MHz (B4)

LTE-FDD 1800 MHz (B3)

LTE-FDD 1900 MHz (B2)

LTE-FDD 2100 MHz (B1)

LTE-FDD 2600 MHz (B7)

LTE-TDD 1900 MHz (B39)

LTE-TDD 2000 MHz (B34)

LTE-TDD 2000 MHz (B34)

LTE-TDD 2300 MHz (B40)

LTE-TDD 2500 MHz (B41)

LTE-TDD 2600 MHz (B38)

5G

5G NR

5G-FDD 1800 MHz (n3)

5G-FDD 2100 MHz (n1)

5G-TDD 2500 MHz (n41)

5G-TDD 3500 MHz (n78

5G-TDD 3500 MHz (n78)

5G-TDD 4700 MHz (n79)
